Sraith Vero® GEN9 Vero® 13 Eagar
Sraith Bridgelux® Vero® GEN9 Vero® 13 Array
Cur síos
Bridgelux® GEN9 Vero® 13 Eagar
Is dul chun cinn réabhlóideach é Sraith Vero® i dteicneolaíocht foinse solais sliseanna ar bord (COB) agus nuálaíocht, rud a shimplíonn próisis deartha agus déantúsaíochta an luminaire. Tá eagair LED Vero Chip on Board (COB) ar fáil i gceithre chumraíocht LES, a innealtóireacht chun céimeanna nua solúbthachta agus iontaofachta a chumasú thar raon leathan sruthanna leictreacha. Seachadann arrays Vero dlús lumen méadaithe chun rialú bhíoma feabhsaithe agus soilsiú beachtas a chumasú le caighdeán rialaithe dath 2 agus 3 SDCM le haghaidh soilsiú aonfhoirmeach glan agus comhsheasmhach.

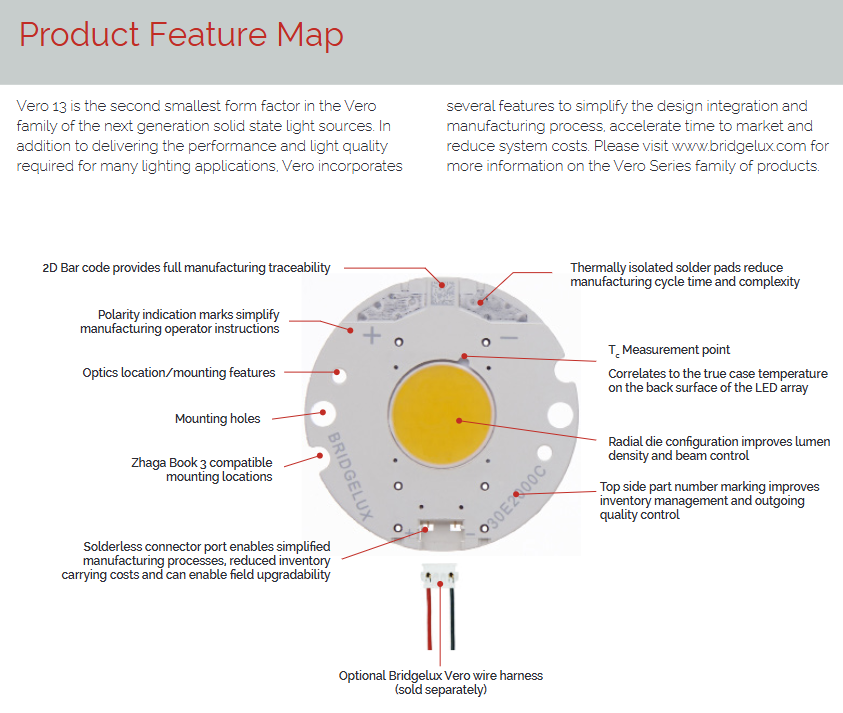

Áirítear le táirgí Vero port cónascaire ar bord a chumasaíonn-idirnasc leictreach saor in aisce solder, agus gnéithe gléasta simplí le haghaidh suiteáil breiseán-agus-.
Is táirge ardéifeachtúlachta é an Gen 9 Vero Series COB a úsáideann fosfar dearg banna caol chun éifeachtúlacht speictrim a fheabhsú go suntasach. Mar thoradh ar an éifeachtúlacht speictrim fheabhsaithe go seachadann táirge 80 CRI den tSraith Gen 9 éifeachtúlacht níos fearr nó a chomhionann agus a bhí ar ár dtáirge Sraith Vero den ghlúin roimhe seo.
Gnéithe
• Éifeachtúlacht 199 lm/W tipiciúil, 3000K 80 CRI
• Rogha leathan de roghanna CCT (2700K-5000K) le 80 rogha CRI íosta
• Soilsiú aonfhoirmeach ardcháilíochta
• Roghanna ceangailteacha 2 agus 3 SDCM (2700K - 4000K)
• 3 agus 4 rogha binning SDCM (5000K)
• Cóid araide voltais ar aghaidh agus marcáil chúl
• Solas Meandaracha le dimming gan teorainn
• Ceapacha sádrála atá aonraithe go teirmeach
• 10-Bliana bharántas
Sochair
• Suiteáil saor in aisce solder agus upgradability réimse
• Bainistíocht fardail agus rialú cáilíochta feabhsaithe
• Cumasaíonn sé córais soilsithe ardéifeachtúlachta agus costais oibriúcháin níos ísle
• Tacaíonn sé leis an treocht i dtreo miniaturization luminaire agus seachadann rialú optúil feabhsaithe
• Solúbthacht dearaidh do raon leathan feidhmeanna soilsithe
• Solas bán glan gan picteilíniú
• Solas bán comhsheasmhach aonfhoirmeach
• Solúbthacht dearaidh d'fheidhmchláir ilfhoinse
• Éascaíocht úsáide agus suiteála feabhsaithe
• Dearadh go muiníneach
|
Teaghlaigh Táirge |
Táirge |
Uimhir Pháirt |
Uimhir Dhoic |
Ghin |
CCT (K) |
Roghanna CRI |
SDCM |
Clóscríobh. Flosc(lm) |
Reatha (mA) |
Voltas (V) |
Éifeachtúlacht (lm/W) |
Méid an tSubstráit (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRC Vero | Fíor 13B | BXRC-xxx20Fx-B-9x | DS1312 | 9 | 2700 - 5000 | 80 | 2,3 | 2350 | 350 | 33.8 | 199 | 13.3 |
|
Teaghlaigh Táirge |
Táirge |
Uimhir Pháirt |
Uimhir Dhoic |
Ghin |
CCT (K) |
Roghanna CRI |
SDCM |
Clóscríobh. Flosc(lm) |
Reatha (mA) |
Voltas (V) |
Éifeachtúlacht (lm/W) |
Méid an tSubstráit (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRC Vero | Fíor 13C | BXRC-xxx20Fx-C-9x | DS1312 | 9 | 2700 - 5000 | 80 | 3,4 | 3350 | 500 | 33.8 | 198 | 13.3 |
Tábla 1:Treoir Roghnúcháin, Sonraí Tomhais Bhíogacha (Tc=25 céim )
|
Uimhir Pháirt |
Ainmneach CCT1 (K) |
CRI2 |
Ainmneach Tiomáint Reatha3 (mA) |
tipiciúil Pulse Flosc4,5,6 Tc = 25ºC (lm) |
íosmhéid Pulse Flosc6,7 Tc = 25ºC (lm) |
tipiciúil Vf (V) |
tipiciúil Cumhacht (W) |
tipiciúil Éifeachtúlacht (lm/W) |
|
BXRC-27E20F0-B-9x |
2700 |
80 |
350 |
2303 |
2073 |
33.8 |
11.8 |
195 |
|
BXRC-27E20F0-C-9x |
2700 |
80 |
500 |
3283 |
2955 |
33.8 |
16.9 |
194 |
|
BXRC-30E20F0-B-9x |
3000 |
80 |
350 |
2350 |
2115 |
33.8 |
11.8 |
199 |
|
BXRC-30E20F0-C-9x |
3000 |
80 |
500 |
3350 |
3015 |
33.8 |
16.9 |
198 |
|
BXRC-35E20F0-B-9x |
3500 |
80 |
350 |
2362 |
2126 |
33.8 |
11.8 |
200 |
|
BXRC-35E20F0-C-9x |
3500 |
80 |
500 |
3367 |
3030 |
33.8 |
16.9 |
199 |
|
BXRC-40E20F0-B-9x |
4000 |
80 |
350 |
2374 |
2136 |
33.8 |
11.8 |
201 |
|
BXRC-40E20F0-C-9x |
4000 |
80 |
500 |
3384 |
3045 |
33.8 |
16.9 |
200 |
|
BXRC-50E20F0-B-9x |
5000 |
80 |
350 |
2327 |
2094 |
33.8 |
11.8 |
197 |
|
BXRC-50E20F0-C-9x |
5000 |
80 |
500 |
3317 |
2985 |
33.8 |
16.9 |
196 |
Tábla 2:Treoir Roghnúcháin, Feidhmíocht Tástála DC Chobhsaithe (Tc=85 céim )4,5,6
|
Uimhir Pháirt |
Ainmneach CCT1 (K) |
CRI2 |
Ainmneach Tiomáint Reatha3 (mA) |
DC tipiciúil Flosc4,5 |
íosmhéid DC Flosc6 |
tipiciúil Vf (V) |
tipiciúil Cumhacht (W) |
tipiciúil Éifeachtúlacht (lm/W) |
||
|
T c |
= 85ºC (lm) |
T c |
= 85ºC (lm) |
|||||||
|
BXRC-27E20F0-B-9x |
2700 |
80 |
350 |
2119 |
1907 |
33.2 |
11.6 |
182 |
||
|
BXRC-27E20F0-C-9x |
2700 |
80 |
500 |
3020 |
2718 |
33.2 |
16.6 |
182 |
||
|
BXRC-30E20F0-B-9x |
3000 |
80 |
350 |
2162 |
1946 |
33.2 |
11.6 |
186 |
||
|
BXRC-30E20F0-C-9x |
3000 |
80 |
500 |
3082 |
2774 |
33.2 |
16.6 |
186 |
||
|
BXRC-35E20F0-B-9x |
3500 |
80 |
350 |
2173 |
1956 |
33.2 |
11.6 |
187 |
||
|
BXRC-35E20F0-C-9x |
3500 |
80 |
500 |
3097 |
2788 |
33.2 |
16.6 |
187 |
||
|
BXRC-40E20F0-B-9x |
4000 |
80 |
350 |
2184 |
1965 |
33.2 |
11.6 |
188 |
||
|
BXRC-40E20F0-C-9x |
4000 |
80 |
500 |
3113 |
2802 |
33.2 |
16.6 |
187 |
||
|
BXRC-50E20F0-B-9x |
5000 |
80 |
350 |
2140 |
1926 |
33.2 |
11.6 |
184 |
||
|
BXRC-50E20F0-C-9x |
5000 |
80 |
500 |
3051 |
2746 |
33.2 |
16.6 |
184 |
||
Tábla 4: Feidhmíocht Táirge ag Sruthanna Tiomána a Úsáidtear go Coitianta
|
Uimhir Pháirt |
CRI |
Tiomáint Reatha1 (mA) |
tipiciúil Vf Tc = 25.C (V) |
tipiciúil Cumhacht Tc = 25.C (W) |
tipiciúil Flosc2 Tc = 25.C (lm) |
tipiciúil DC Flosc3 Tc = 85.C (lm) |
tipiciúil Éifeachtúlacht Tc = 25.C (lm/W) |
|
BXRC-27E20F0-B-9x |
80 |
125 |
31.8 |
4.0 |
844 |
786 |
212 |
|
250 |
33.0 |
8.2 |
1669 |
1546 |
202 |
||
|
300 |
33.4 |
10.0 |
1989 |
1836 |
198 |
||
|
350 |
33.8 |
11.8 |
2303 |
2119 |
195 |
||
|
630 |
35.7 |
22.5 |
3979 |
3593 |
177 |
||
|
900 |
37.6 |
33.8 |
5512 |
4896 |
163 |
||
|
BXRC-27E20F0-C-9x |
80 |
175 |
31.8 |
5.6 |
1180 |
1099 |
212 |
|
350 |
32.9 |
11.5 |
2335 |
2163 |
203 |
||
|
400 |
33.2 |
13.3 |
2655 |
2454 |
200 |
||
|
500 |
33.8 |
16.9 |
3283 |
3020 |
194 |
||
|
875 |
35.7 |
31.2 |
5524 |
4992 |
177 |
||
|
1260 |
37.5 |
47.3 |
7708 |
6851 |
163 |
||
|
BXRC-30E20F0-B-9x |
80 |
125 |
31.8 |
4.0 |
861 |
802 |
216 |
|
250 |
33.0 |
8.2 |
1704 |
1577 |
207 |
||
|
300 |
33.4 |
10.0 |
2030 |
1873 |
203 |
||
|
350 |
33.8 |
11.8 |
2350 |
2162 |
199 |
||
|
630 |
35.7 |
22.5 |
4060 |
3666 |
180 |
||
|
900 |
37.6 |
33.8 |
5624 |
4996 |
166 |
||
|
BXRC-30E20F0-C-9x |
80 |
175 |
31.8 |
5.6 |
1204 |
1122 |
217 |
|
350 |
32.9 |
11.5 |
2383 |
2207 |
207 |
||
|
400 |
33.2 |
13.3 |
2709 |
2504 |
204 |
||
|
500 |
33.8 |
16.9 |
3350 |
3082 |
198 |
||
|
875 |
35.7 |
31.2 |
5637 |
5094 |
181 |
||
|
1260 |
37.5 |
47.3 |
7865 |
6991 |
166 |
||
|
BXRC-35E20F0-B-9x |
80 |
125 |
31.8 |
4.0 |
866 |
806 |
218 |
|
250 |
33.0 |
8.2 |
1712 |
1585 |
208 |
||
|
300 |
33.4 |
10.0 |
2040 |
1883 |
204 |
||
|
350 |
33.8 |
11.8 |
2362 |
2173 |
200 |
||
|
630 |
35.7 |
22.5 |
4081 |
3685 |
181 |
||
|
900 |
37.6 |
33.8 |
5652 |
5021 |
167 |
||
|
BXRC-35E20F0-C-9x |
80 |
175 |
31.8 |
5.6 |
1210 |
1127 |
218 |
|
350 |
32.9 |
11.5 |
2394 |
2218 |
208 |
||
|
400 |
33.2 |
13.3 |
2723 |
2516 |
205 |
||
|
500 |
33.8 |
16.9 |
3367 |
3097 |
199 |
||
|
875 |
35.7 |
31.2 |
5665 |
5120 |
182 |
||
|
1260 |
37.5 |
47.3 |
7905 |
7026 |
167 |
|
Uimhir Pháirt |
CRI |
Tiomáint Reatha1 (mA) |
tipiciúil Vf Tc = 25.C (V) |
tipiciúil Cumhacht Tc = 25.C (W) |
tipiciúil Flosc2 Tc = 25.C (lm) |
tipiciúil DC Flosc3 Tc = 85.C (lm) |
tipiciúil Éifeachtúlacht Tc = 25.C (lm/W) |
|
BXRC-40E20F0-B-9x |
80 |
125 |
31.8 |
4.0 |
870 |
810 |
219 |
|
250 |
33.0 |
8.2 |
1721 |
1593 |
209 |
||
|
300 |
33.4 |
10.0 |
2050 |
1892 |
205 |
||
|
350 |
33.8 |
11.8 |
2374 |
2184 |
201 |
||
|
630 |
35.7 |
22.5 |
4101 |
3703 |
182 |
||
|
900 |
37.6 |
33.8 |
5680 |
5046 |
168 |
||
|
BXRC-40E20F0-C-9x |
80 |
175 |
31.8 |
5.6 |
1216 |
1133 |
219 |
|
350 |
32.9 |
11.5 |
2406 |
2229 |
209 |
||
|
400 |
33.2 |
13.3 |
2736 |
2529 |
206 |
||
|
500 |
33.8 |
16.9 |
3384 |
3113 |
200 |
||
|
875 |
35.7 |
31.2 |
5694 |
5145 |
183 |
||
|
1260 |
37.5 |
47.3 |
7944 |
7061 |
168 |
||
|
BXRC-50E20F0-B-9x |
80 |
125 |
31.8 |
4.0 |
853 |
794 |
214 |
|
250 |
33.0 |
8.2 |
1687 |
1562 |
204 |
||
|
300 |
33.4 |
10.0 |
2009 |
1855 |
200 |
||
|
350 |
33.8 |
11.8 |
2327 |
2140 |
197 |
||
|
630 |
35.7 |
22.5 |
4020 |
3630 |
179 |
||
|
900 |
37.6 |
33.8 |
5568 |
4946 |
165 |
||
|
BXRC-50E20F0-C-9x |
80 |
175 |
31.8 |
5.6 |
1192 |
1110 |
214 |
|
350 |
32.9 |
11.5 |
2359 |
2185 |
205 |
||
|
400 |
33.2 |
13.3 |
2682 |
2479 |
202 |
||
|
500 |
33.8 |
16.9 |
3317 |
3051 |
196 |
||
|
875 |
35.7 |
31.2 |
5581 |
5043 |
179 |
||
|
1260 |
37.5 |
47.3 |
7787 |
6921 |
165 |
Tábla 5:Tréithe Leictreacha
|
Uimhir Pháirt |
Drive Current (mA) |
Ar aghaidh Voltas Pulse, Tc = 25.C (V) 1, 2, 3, 8 |
tipiciúil Comhéifeacht de Ar Aghaidh Voltas4 ∆Vf/∆Tc (mV/ºC) |
tipiciúil Teirmeach Friotaíocht Acomhal a Cás5,6 Rj-c (ºC/W) |
Roghnú tiománaí Voltas7 (V) |
|||
|
íosmhéid |
tipiciúil |
Uasmhéid |
||||||
|
Vf Min. te Tc = 105ºC (V) |
Vf uas. Fuar T = -40ºC (V) |
|||||||
|
BXRC-xxx20Fx-B-9x |
350 |
31.8 |
33.8 |
35.8 |
-13.25 |
0.22 |
31.0 |
37.1 |
|
900 |
35.4 |
37.6 |
39.9 |
-14.66 |
0.34 |
34.5 |
41.3 |
|
|
BXRC-xxx20Fx-C-9x |
500 |
31.8 |
33.8 |
35.8 |
-13.27 |
0.19 |
31.0 |
37.1 |
|
1260 |
35.3 |
37.5 |
39.8 |
-14.68 |
0.29 |
34.4 |
41.2 |
|
|
Cuid Uimhir |
Drive Current (mA) |
CCT5 |
||
|
2700K/3000K |
4000K2 |
5000K3 |
||
|
BXRC-xxx20Fx-B-9x |
RG1 |
RG1 |
RG1 |
|
|
RG1 |
RG1 |
RG2 |
||
|
BXRC-xxx20Fx-C-9x |
RG1 |
RG1 |
RG1 |
|
|
RG1 |
RG1 |
RG2 |
||
