Cur síos
Soilse Ardchumhachta Bán SST-20-WxS
Gnéithe
• Soilse bána fionnuara ard-ghile le haschur uasta níos mó ná 1000 lm @ 3A, 85 céim .
• Ard-dlús lumen d'astaí monailiteach, suas le 518 lm/mm2(6500K), atá oiriúnach chun an éifeachtúlacht optúil a uasmhéadú i bhfeidhmchláir soilsithe ard-aschuir, patrún léasacha.
• Uasmhéid Tiomána Reatha: 3 A
• Éifeachtúlacht lonrúil: cló. 206 lm/W @ 350 mA, 85 céim (6500K)
• Teocht Dath: 5000K, 5700K, 6500K
• Innéacs Rindreála Dathanna: nóim. 65, clóscríobh. 70
• Friotaíocht teirmeach íseal: 1.6 céim C/W
• boscaí bruscair crómatachta ANSI-comhoiriúnacha
• Sonraí tástála LM-80 10,000-uair ar fáil, saolré TM-21 den scoth agus cobhsaíocht datha

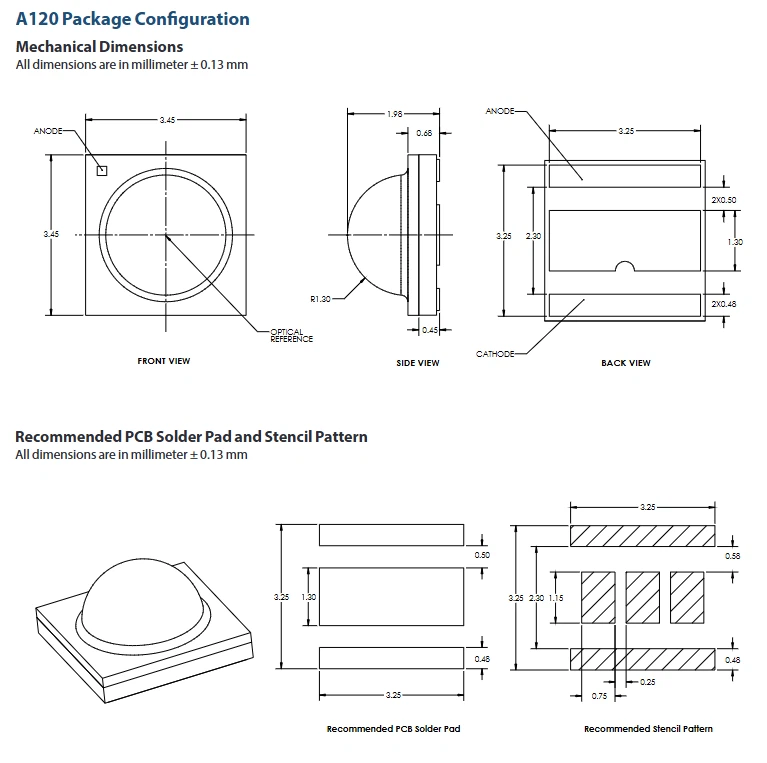

• Ar fáil i 2 chumraíocht lorg sádrála
• Conair teirmeach atá scoite amach go leictreach
• Rátáil ESD 8 kV HBM in aghaidh ANSI/ESDA/JEDEC JS-001
• RoHS agus REACH comhlíontach
Feidhmchláir
• Soilse Inaistrithe
• Soilse Rothar
• Soilse Cúnta Feithicleach
• Soilse Oibre LED
• Soilsiú Lasmuigh agus Bóthair
• Soilsiú Tionsclaíochta ar Chuan Ard
Uimhir Chuid Ordaithers
|
CCT |
íosmhéid Flosc Araid1 |
íosmhéid Flosc (lm) |
Cromaticity Cód Bin Kit2 |
Pad Soilire Cineál3 |
Uimhreacha Coda a Ordú |
|
5000K |
L4 |
585 |
501 |
A |
SST-20-WDS-A120-L4501 |
|
B |
SST-20-WDS-B120-L4501 |
||||
|
502 |
A |
SST-20-WDS-A120-L4502 |
|||
|
B |
SST-20-WDS-B120-L4502 |
||||
|
L5 |
620 |
501 |
A |
SST-20-WDS-A120-L5501 |
|
|
B |
SST-20-WDS-B120-L5501 |
||||
|
502 |
A |
SST-20-WDS-A120-L5502 |
|||
|
B |
SST-20-WDS-B120-L5502 |
||||
|
5700K |
L4 |
585 |
571 |
A |
SST-20-WDS-A120-L4571 |
|
B |
SST-20-WDS-B120-L4571 |
||||
|
572 |
A |
SST-20-WDS-A120-L4572 |
|||
|
B |
SST-20-WDS-B120-L4572 |
||||
|
L5 |
620 |
571 |
A |
SST-20-WDS-A120-L5571 |
|
|
B |
SST-20-WDS-B120-L5571 |
||||
|
572 |
A |
SST-20-WDS-A120-L5572 |
|||
|
B |
SST-20-WDS-B120-L5572 |
||||
|
6500K |
L4 |
585 |
651 |
A |
SST-20-WCS-A120-L4651 |
|
B |
SST-20-WCS-B120-L4651 |
||||
|
652 |
A |
SST-20-WCS-A120-L4652 |
|||
|
B |
SST-20-WCS-B120-L4652 |
||||
|
L5 |
620 |
651 |
A |
SST-20-WCS-A120-L5651 |
|
|
B |
SST-20-WCS-B120-L5651 |
||||
|
652 |
A |
SST-20-WCS-A120-L5652 |
|||
|
B |
SST-20-WCS-B120-L5652 |
Binning Flux lonrúil
|
Bosca Bruscair Cód |
Binning @ 1500 mA, Tj=85 céim1 |
@ 350 mA, Tj=25 céim2 |
Comhghaolú íosmhéid Flosc (lm) @ Tj=85 céim2 |
||||
|
íosmhéid Flosc (lm) |
Uasmhéid Flosc (lm) |
íosmhéid Flosc (lm) |
350 mA |
700 mA |
2000 mA |
3000 mA |
|
|
L3 |
560 |
585 |
180 |
157 |
297 |
700 |
941 |
|
L4 |
585 |
620 |
187 |
164 |
310 |
731 |
983 |
|
L5 |
620 |
665 |
200 |
174 |
330 |
775 |
1042 |
|
M2 |
665 |
705 |
213 |
186 |
352 |
831 |
1117 |
|
M3 |
705 |
745 |
226 |
197 |
374 |
881 |
1184 |
Ar aghaidh Binning Voltais
|
Cód Araid Voltais |
Binning @ 1500mA, Tj=85 céim |
|
|
íosmhéid Voltas (V) |
Uasmhéid Voltas (V) |
|
|
VH |
2.5 |
2.7 |
|
VJ |
2.7 |
2.9 |
|
VK |
2.9 |
3.1 |
|
VL |
3.1 |
3.3 |
Comhordanáidí Binning Chromaticity
|
CCT |
Araid Cód |
CIEx |
CIEy |
Araid Cód |
CIEx |
CIEy |
Araid Cód |
CIEx |
CIEy |
Araid Cód |
CIEx |
CIEy |
|
5000K |
DA |
0.3371 |
0.349 |
DB |
0.3376 |
0.3616 |
DC |
0.3463 |
0.3687 |
LL |
0.3451 |
0.3554 |
|
0.3451 |
0.3554 |
0.3463 |
0.3687 |
0.3551 |
0.376 |
0.3533 |
0.362 |
|||||
|
0.344 |
0.3427 |
0.3451 |
0.3554 |
0.3533 |
0.362 |
0.3515 |
0.3487 |
|||||
|
0.3366 |
0.3369 |
0.3371 |
0.349 |
0.3451 |
0.3554 |
0.3440 |
0.3427 |
|||||
|
DH |
0.3366 |
0.3369 |
DE |
0.3381 |
0.3762 |
DF |
0.348 |
0.384 |
DG |
0.344 |
0.3428 |
|
|
0.344 |
0.3428 |
0.348 |
0.384 |
0.3571 |
0.3907 |
0.3515 |
0.3487 |
|||||
|
0.3429 |
0.3307 |
0.3463 |
0.3687 |
0.3551 |
0.376 |
0.3495 |
0.3339 |
|||||
|
0.3361 |
0.3245 |
0.3376 |
0.3616 |
0.3463 |
0.3687 |
0.3429 |
0.3307 |
|||||
|
5700K |
CA |
0.3215 |
0.335 |
CB |
0.3207 |
0.3462 |
CC |
0.329 |
0.3538 |
CD |
0.329 |
0.3417 |
|
0.329 |
0.3417 |
0.329 |
0.3538 |
0.3376 |
0.3616 |
0.3371 |
0.349 |
|||||
|
0.329 |
0.33 |
0.329 |
0.3417 |
0.3371 |
0.349 |
0.3366 |
0.3369 |
|||||
|
0.3222 |
0.3243 |
0.3215 |
0.335 |
0.329 |
0.3417 |
0.3290 |
0.3300 |
|||||
|
CH |
0.3222 |
0.3243 |
CE |
0.3196 |
0.3602 |
CF |
0.329 |
0.369 |
CG |
0.329 |
0.33 |
|
|
0.329 |
0.33 |
0.329 |
0.369 |
0.3381 |
0.3762 |
0.3366 |
0.3369 |
|||||
|
0.329 |
0.318 |
0.329 |
0.3538 |
0.3376 |
0.3616 |
0.3361 |
0.3245 |
|||||
|
0.3231 |
0.312 |
0.3207 |
0.3462 |
0.329 |
0.3538 |
0.3290 |
0.3180 |
|||||
|
6500K |
BA |
0.3048 |
0.3207 |
bb |
0.3028 |
0.3304 |
RC |
0.3115 |
0.3391 |
BD |
0.313 |
0.329 |
|
0.313 |
0.329 |
0.3115 |
0.3391 |
0.3205 |
0.3481 |
0.3213 |
0.3373 |
|||||
|
0.3144 |
0.3186 |
0.313 |
0.329 |
0.3213 |
0.3373 |
0.3221 |
0.3261 |
|||||
|
0.3068 |
0.3113 |
0.3048 |
0.3207 |
0.313 |
0.329 |
0.3144 |
0.3186 |
|||||
|
BH |
0.3068 |
0.3113 |
BE |
0.3005 |
0.3415 |
BF |
0.3099 |
0.3509 |
BG |
0.3144 |
0.3186 |
|
|
0.3144 |
0.3186 |
0.3099 |
0.3509 |
0.3196 |
0.3602 |
0.3221 |
0.3261 |
|||||
|
0.3161 |
0.3059 |
0.3115 |
0.3391 |
0.3205 |
0.3481 |
0.3231 |
0.312 |
|||||
|
0.3093 |
0.2993 |
0.3028 |
0.3304 |
0.3115 |
0.3391 |
0.3161 |
0.3059 |
Táirge Tréithe
|
Paraiméadar |
Siombail |
íosmhéid |
tipiciúil |
Uasmhéid |
Aonad |
|
Uillinn Amharc (FWHM) |
2θ1/2 |
120 |
Céim |
||
|
Innéacs Rindreála Dath |
CRI |
65 |
70 |
||
|
Friotaíocht theirmeach (Leictreach) Acomhal/Pointe Sádrála |
Rthjs-EL |
1.6 |
céim / W |
||
|
Teocht Acomhal |
Tj |
150 |
céime |
||
|
Voltas ar Aghaidh (@ Más=1500 mA, Tj=85 céim ) |
Vf |
2.7 |
3.0 |
3.3 |
V |
|
DC Forward Reatha |
Más rud é |
0.2 |
3 |
A |
|
|
Reatha Reatha (t<10 ms, Duty Cycle < 10%) |
Is-uas |
4 |
A |
||
|
Voltas Droim ar Ais (Ir=10 mA) |
V r |
5 |
V |
||
|
Diomailt Cumhachta |
Pd |
10 |
W |
||
|
Teocht Oibriúcháin |
T opr |
-40 |
100 |
céime |
|
|
Teocht Stórála |
T stg |
-40 |
100 |
céime |
|
|
ESD sheasamh Voltas HBM De réir ANSI/ESDA/JEDEC JS-001 |
VHBM |
8 |
kV |
||
|
ESD sheasamh Voltas CDM De réir ANSI/ESDA/JEDEC JS-002 |
VCDM |
1 |
kV |
